List of replacements being done in the 1990s.
| Area | Description | Dimension mm, m2 or (l*b*h) |
|

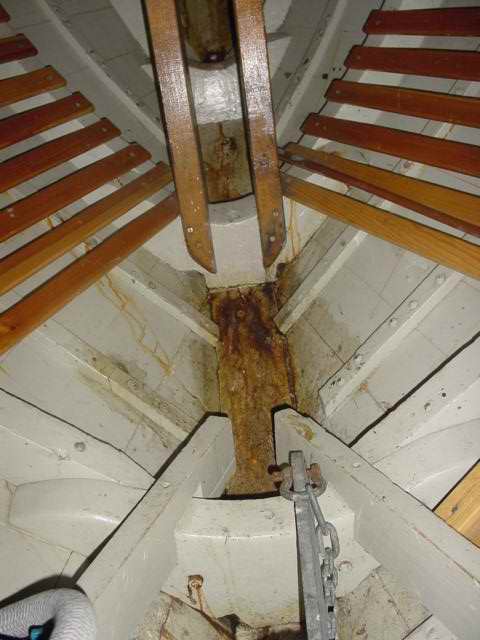

| Material | Generally pitch pine on oak | - | |
| Scantlings & construction procedure | |||
| Keel | Cast iron (uncertain if it's hollow with cement) | 4500*300*400 mm | |
| Keel plank | Oak - replaced in 1993 (pic) | 4000*250*50 mm | |
| Keel bolts | Stainless Steel. Replaced in mid 1990s (pic) | ||
| Stem | Oak. Original - it shows but is not any major concern (pic)(pic) | - | |

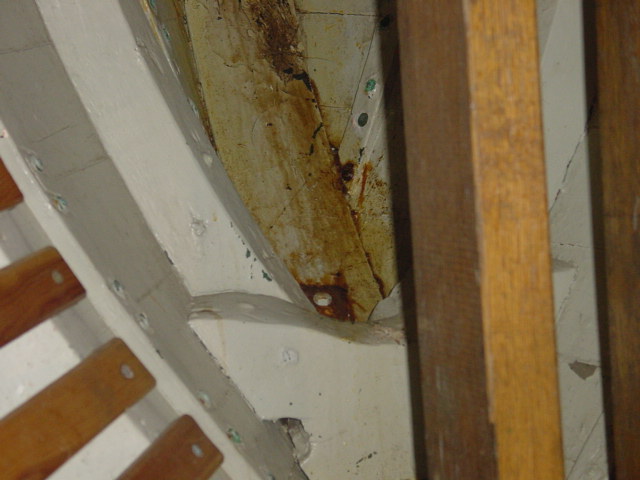

| Sternpost | Oak. (pic) | ||
| Counter | |||
| Planking | Pine. | 24 mm | |

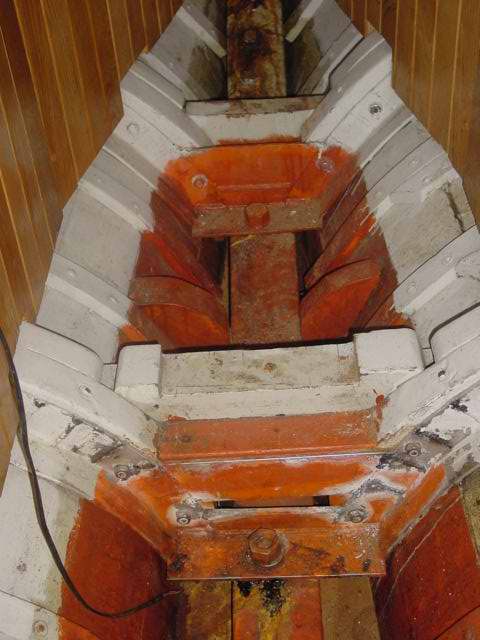

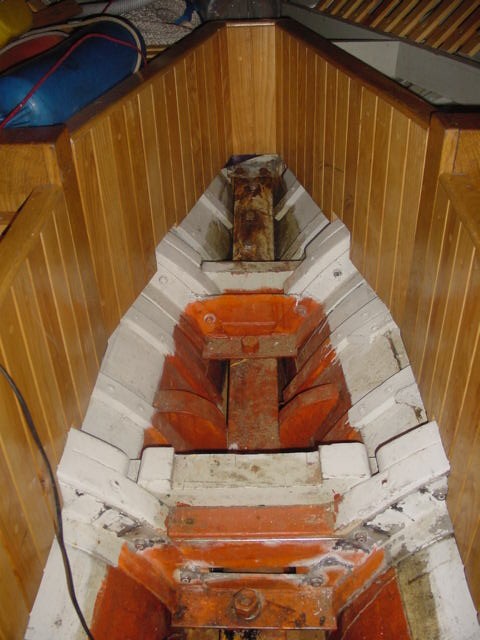

| Floors | Oak floors re-enforced with stainless steel (pic) reacing up to the 3rd planking from garboard. Through bolted with 10 mm stainless steel bolts | ||

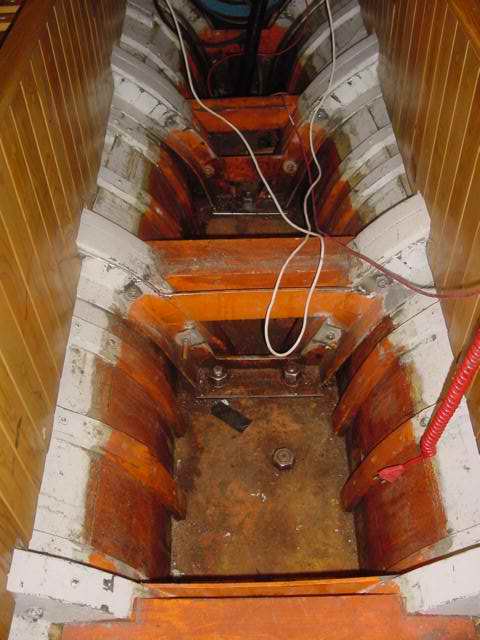

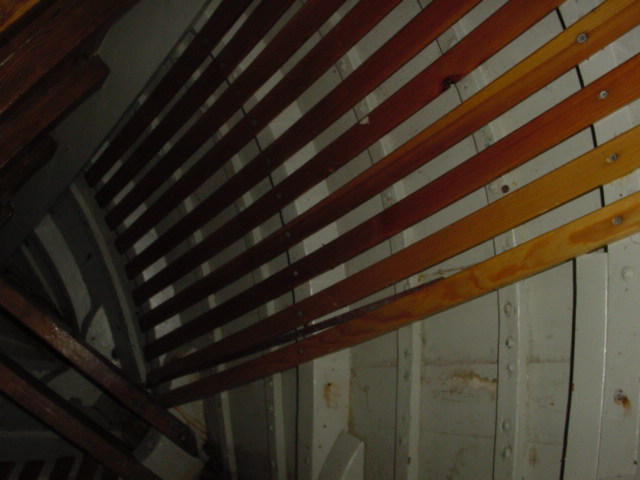

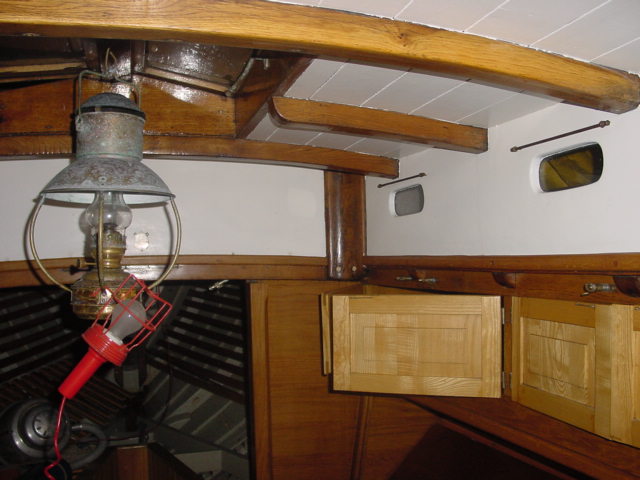

| Frames | Oak. Steambend frames (pic). 630 mm distance | 60*80 mm | |
| Intermediate bent frames | Oak. Steambend, two intermediate (pic)(pic) | 45*20 mm | |
| Beams | Oak. (pic). 400 mm distance | 60*80 mm | |
| Beam shelf | Oak. Multiple. | ||
| Beam clamp | |||
| Bilge stringers | |||
| Deck planking | Larch on elm. Very solid build. Deck originally tongue-and-groove strakes with canvas which is also why Aage has strong deckframes and solid mast partners (pic). At some time in the 70ties a teak deck was laid on top of the original deck. Nice looking but a nightmare to keep watertight. | ||
| Coach roof | Oak. (pic).Recently painted white on the inside. | 40 mm | |

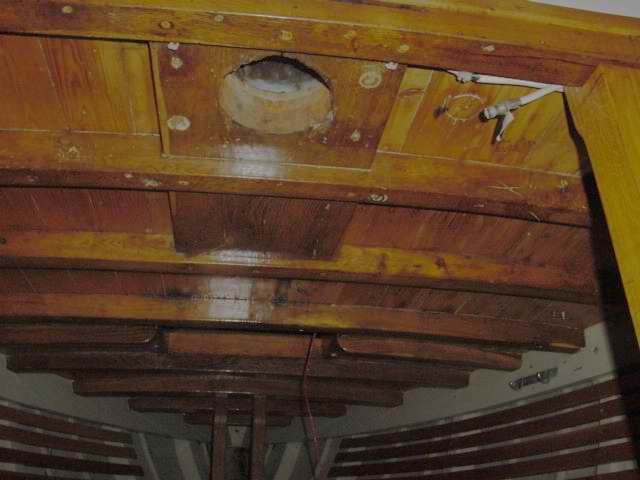

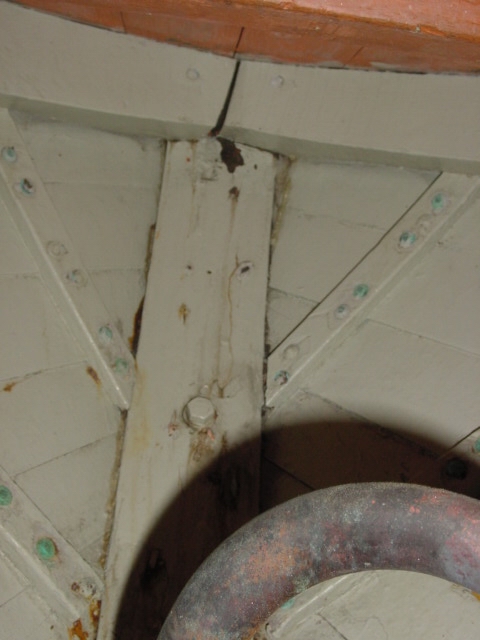

| Mast partner | Spans three deck beams (pic) | 750*350*45 mm | |

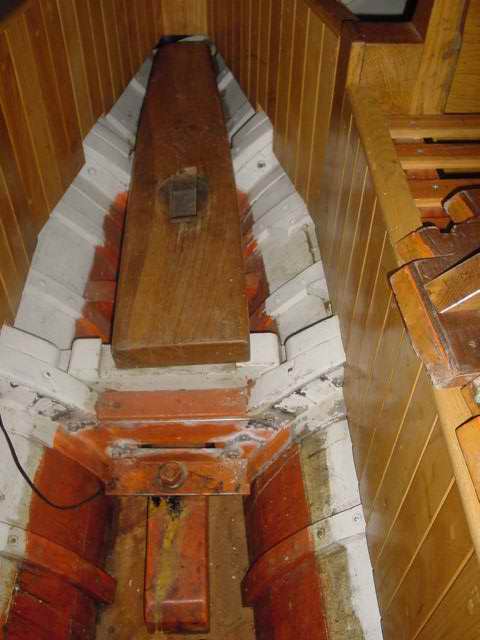

| Mast step | Oak. Very solid (pic). The mast rests solidly on the forefoot-to-keel joint (pic) and on (only) two floors | 1110*250*100 mm | |
| Rigging | |||

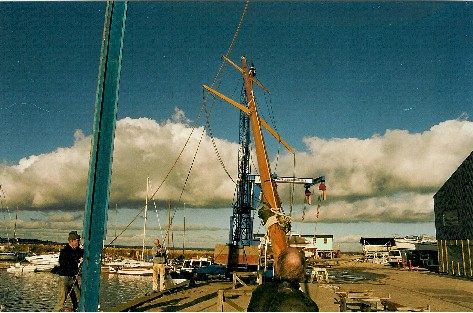

| Mast | Sitka Spruce. Hollow - glued by four parts in a quadrant. Tapered but not excessively so (pic) | Top Ø 100 mm Middle 160*140 mm Step 120*120 mm |
|
| Spreaders | 2 spreaders (1100 mm and 800 mm, respectively). | ||
| Wire | Stainless Steel, 1*19 | 7 mm | |

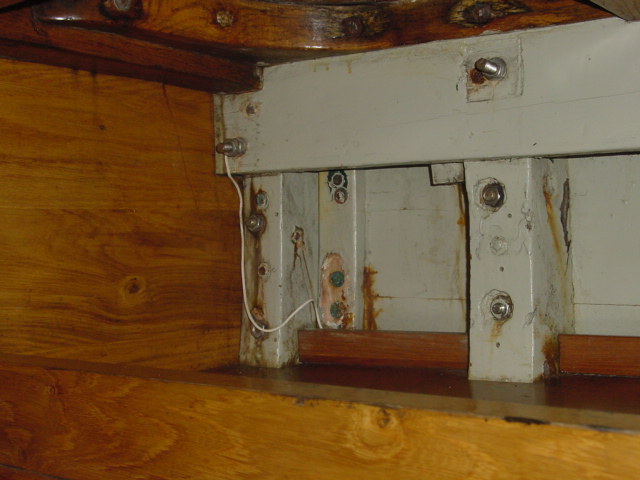

| Chainplates | Stainless Steel - mounted outside of hull. Connected to one full sized frame and two half sized frame (pic from inside) through deck stringer. Three bolts in each. | 5 mm plate 10 mm bolts |
|
| Tangs | 2-3 mm stainless steel (lower, medium, top) | ||
| Halyard, main & jib | Two MERRIMAN winches (pic), wires for main and genoa. | 4-5 mm wires | |

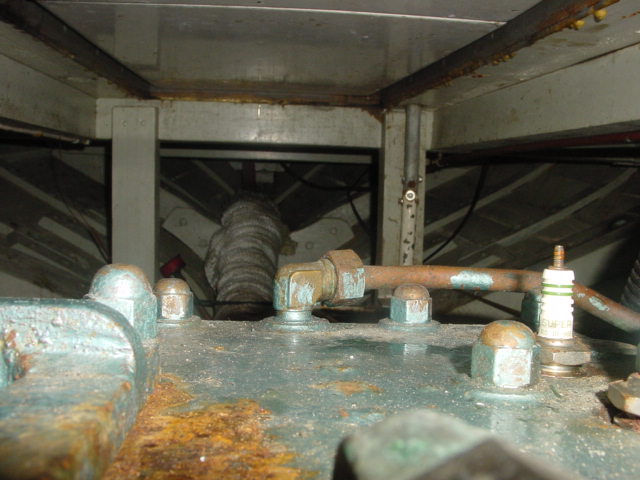

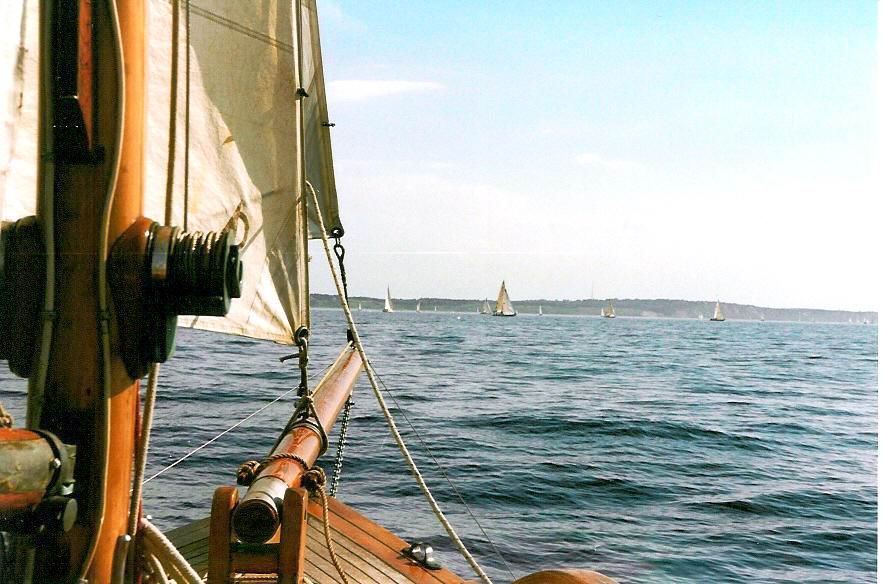

| Engine | Petrol 14 horsepower. "Marstaller" built in Denmark in 1967 (pic) | ||
| Sail-robe | |||
| Main | 7 oz. Roller reefing. | 34 m2 | |
| Genoa 1 | 7 oz - 'flying' from a traveller ring on the bowsprit. In less than 10 knots (5 m/s) | 24 m2 | |
| Genoa 2 | 7 oz - 'flying' from a traveller ring on the bowsprit. In less than 20 knots (10 m/s) | 17 m2 | |
| Genoa 3 | 7 oz - 'flying' from a traveller ring on the bowsprit. In less than 30 knots (15 m/s) | 10 m2 | |
| Stay sail | 6 oz | 10 m2 | |
